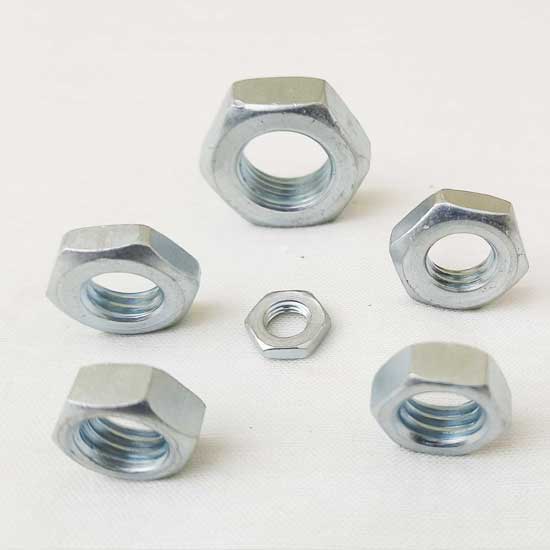

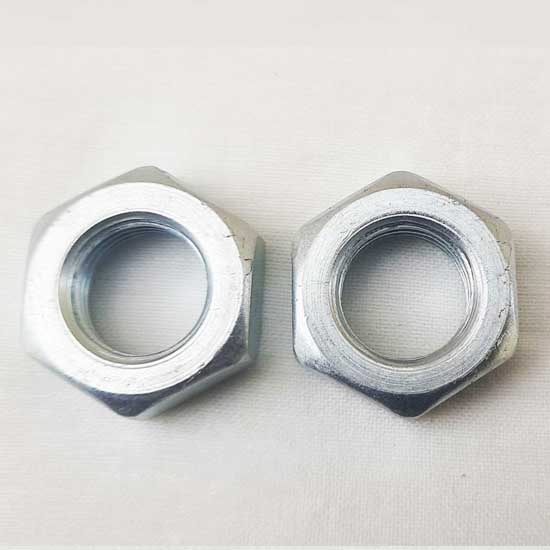

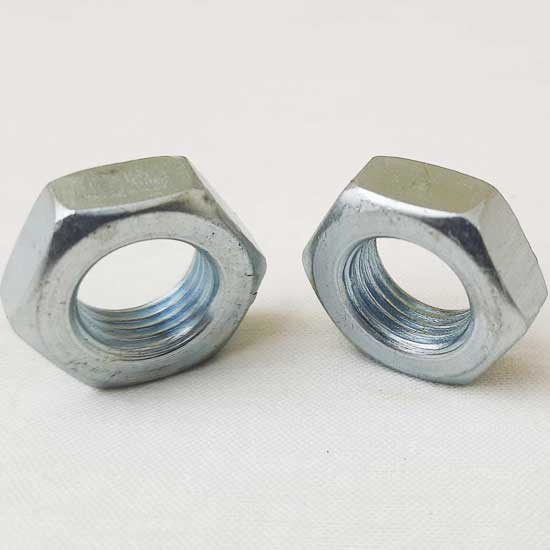

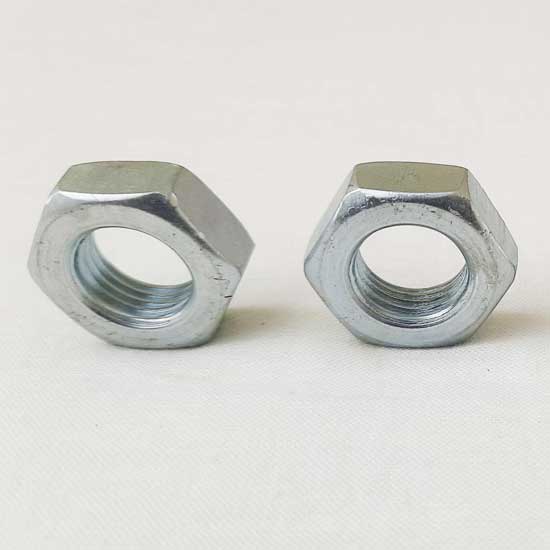

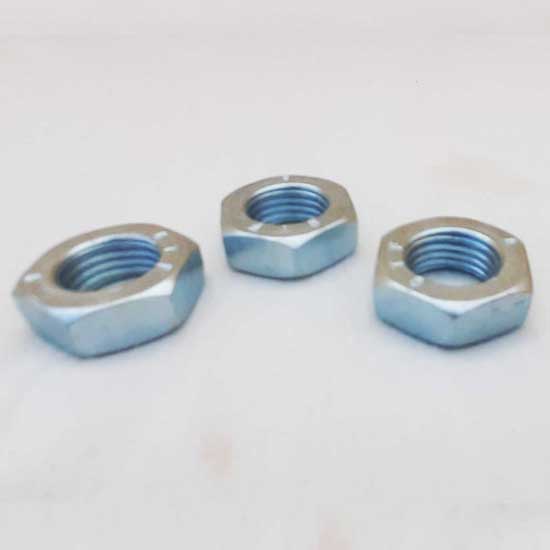

| M4x0.7 Lock Nut |
1004010803 |
GR 6 |
ASME B18.2.2 |
| Across Flat |
7.73 / 8.00 |
| Across Corner |
8.78 Min |
| Total Thicknes |
2.90 / 3.20 |
|
| M5x0.8 Lock Nut |
1005020803 |
GR 6 |
ASME B18.2.2 |
| Across Flat |
7.73 / 8.00 |
| Across Corner |
8.79 Min |
| Total Thicknes |
2.45 / 2.70 |
|
| M6x1.00 Lock Nut |
1006031003 |
GR 6 |
ASME B18.2.2 |
| Across Flat |
9.73 / 10.00 |
| Across Corner |
11.02 Min |
| Total Thicknes |
2.90 / 3.20 |
|
| M8x1.25 Lock Nut |
1008041405 |
GR 8 |
ASME B18.2.2 |
| Across Flat |
13.73 / 14.00 |
| Across Corner |
15.54 Min |
| Total Thicknes |
4.70 / 5.00 |
|
| M10x1.5 Lock Nut |
1010051406 |
GR 8 |
ASME B18.2.2 |
| Across Flat |
13.73 / 14.00 |
| Across Corner |
15.38 Min |
| Total Thicknes |
5.80 / 6.20 |
|
| M10x1.5 Lock Nut |
1010051705 |
GR 8 |
ASME B18.2.2 |
| Across Flat |
16.73 / 17.00 |
| Across Corner |
18.99 Min |
| Total Thicknes |
4.70 / 5.00 |
|
| M14x1.5 Lock Nut |
1014052208 |
GR 8 |
ASME B18.2.2 |
| Across Flat |
21.73 / 22.00 |
| Across Corner |
26.50 Max |
| Total Thicknes |
7.80 / 8.20 |
|
