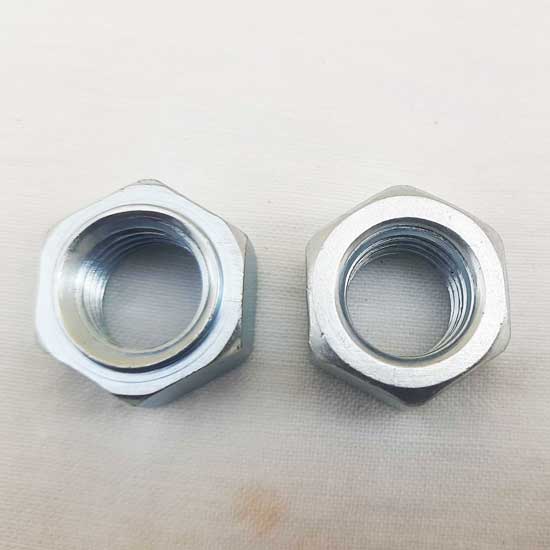

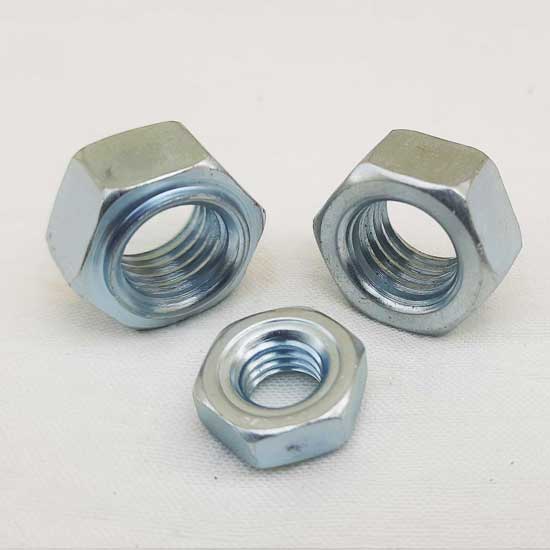

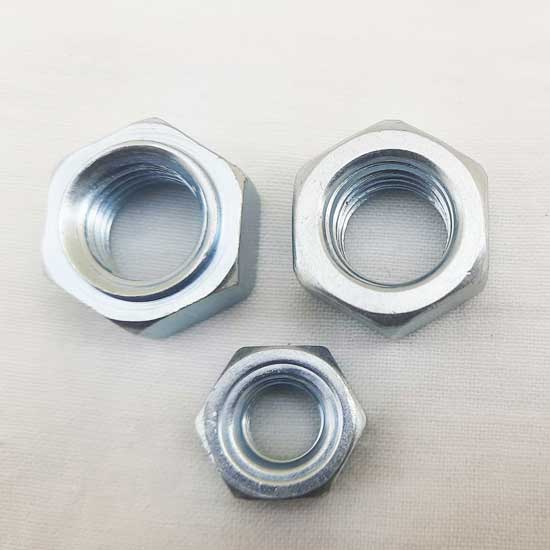

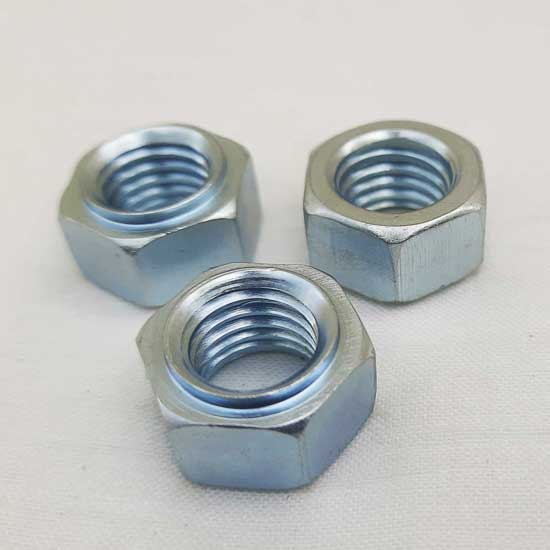

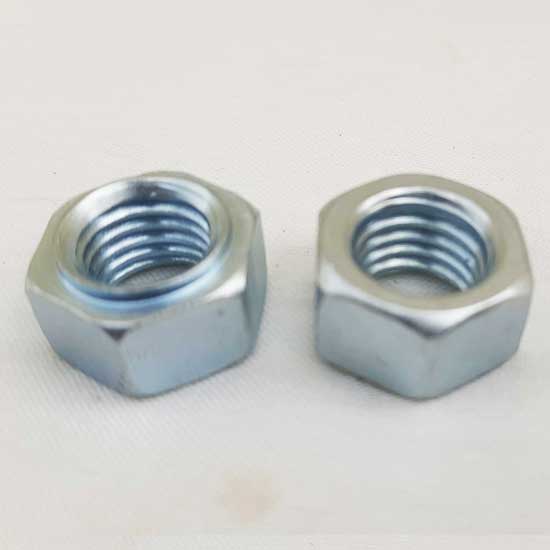

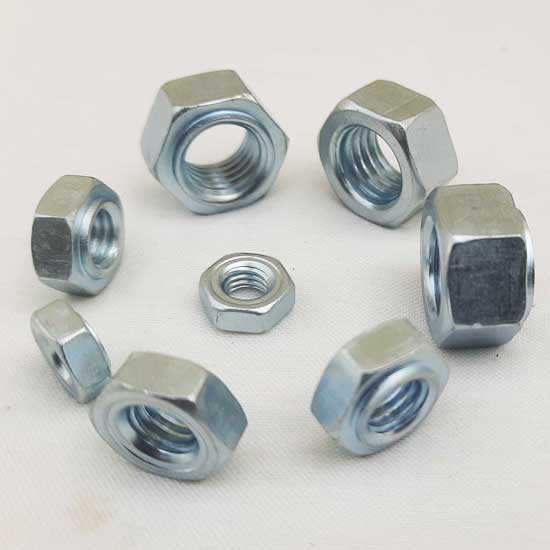

| M5x0.8 Hex Weld Nut (Without Leg) |
2105021005 |
GR 6 |
|
| Across Flat |
9.73 / 10.00 |
| Across Corner |
10.95 Min |
| Total Thicknes |
4.70 / 5.00 |
| Pip Diameter |
6.87 / 7.00 |
| Pip height |
0.60 / 0.60 |
|
| M6x1.00 Hex Weld Nut (Without Leg) |
2106031105 |
GR 6 |
|
| Across Flat |
10.73 / 11.00 |
| Across Corner |
12.02 Min |
| Total Thicknes |
4.70 / 5.00 |
| Pip Diameter |
7.87 / 8.00 |
| Pip height |
0.60 / 0.75 |
|
| M8x1.25 Hex Weld Nut (Without Leg) |
2108041406 |
GR 8 |
|
| Across Flat |
13.73 / 14.00 |
| Across Corner |
15.38 Min |
| Total Thicknes |
6.14 / 6.50 |
| Pip Diameter |
10.34 / 10.50 |
| Pip height |
0.75 / 0.90 |
|
| M10x1.5 Hex Weld Nut (Without Leg) |
2110051708 |
GR 8 |
|
| Across Flat |
16.73 / 17.00 |
| Across Corner |
18.74 Min |
| Total Thicknes |
7.64 / 8.00 |
| Pip Diameter |
12.34 / 12.50 |
| Pip height |
0.95 / 1.15 |
|
