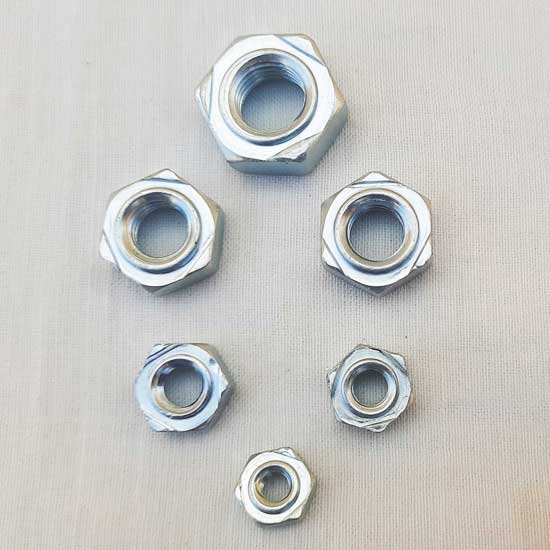

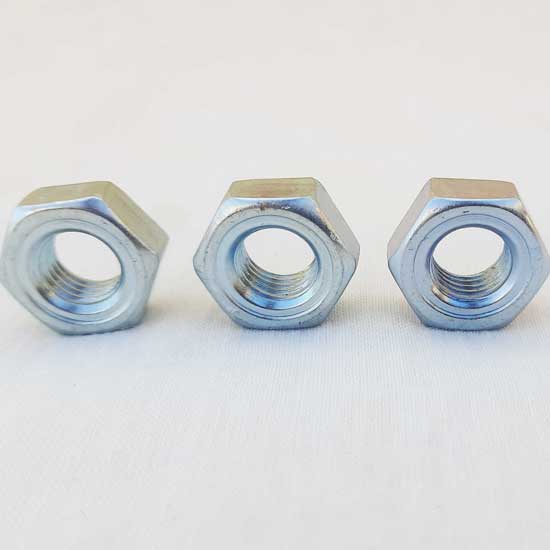

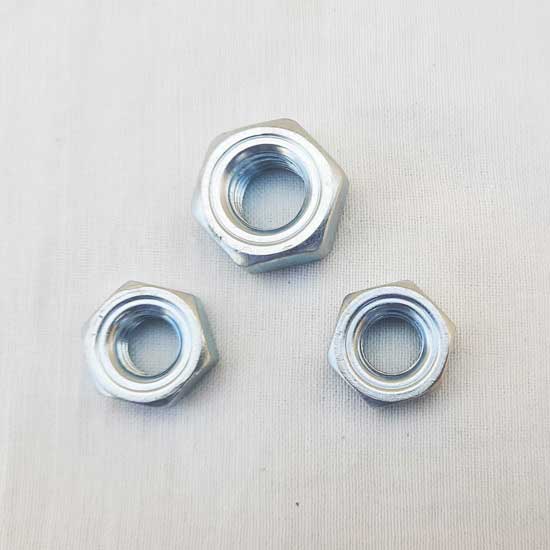

| M4x0.7 Hex Weld Nut |
2004010903 |
GR 6 |
IS 8856 |
| Across Flat |
8.78 / 9.00 |
| Across Corner |
9.83 Min |
| Total Thicknes |
3.20 / 3.50 |
| Pip Diameter |
5.90 / 6.00 |
| Pip height |
0.55 / 0.65 |
| Leg Height |
0.25 / 0.35 |
|
| M5x0.8 Hex Weld Nut |
2005021005 |
GR 6 |
IS 8856 |
| Across Flat |
9.73 / 10.00 |
| Across Corner |
10.95 Min |
| Total Thicknes |
4.70 / 5.00 |
| Pip Diameter |
6.87 / 7.00 |
| Pip height |
0.60 / 0.60 |
| Leg Height |
0.30 / 0.40 |
|
| M6x1.00 Hex Weld Nut |
2006031105 |
GR 6 |
IS 8856 |
| Across Flat |
10.73 / 11.00 |
| Across Corner |
12.02 Min |
| Total Thicknes |
4.70 / 5.00 |
| Pip Diameter |
7.87 / 8.00 |
| Pip height |
0.60 / 0.75 |
| Leg Height |
0.30 / .40 |
|
| M8x1.25 Hex Weld Nut |
2008041406 |
GR 8 |
IS 8856 |
| Across Flat |
13.73 / 14.00 |
| Across Corner |
15.38 Min |
| Total Thicknes |
6.14 / 6.50 |
| Pip Diameter |
10.34 / 10.50 |
| Pip height |
0.75 / 0.90 |
| Leg Height |
0.35 / 0.50 |
|
| M10x1.5 Hex Weld Nut |
2010051708 |
GR 8 |
IS 8856 |
| Across Flat |
16.73 / 17.00 |
| Across Corner |
18.74 Min |
| Total Thicknes |
7.64 / 8.00 |
| Pip Diameter |
12.34 / 12.50 |
| Pip height |
0.95 / 1.15 |
| Leg Height |
0.50 / 0.65 |
|
| M16x1.5 Hex Weld Nut |
2016052413 |
GR 8 |
IS 8856 |
| Across Flat |
23.67 / 24.00 |
| Across Corner |
26.51 Min |
| Total Thicknes |
12.57 / 13.00 |
| Pip Diameter |
18.60 / 18.80 |
| Pip height |
1.60 / 1.80 |
| Leg Height |
0.80 / 1.00 |
|
