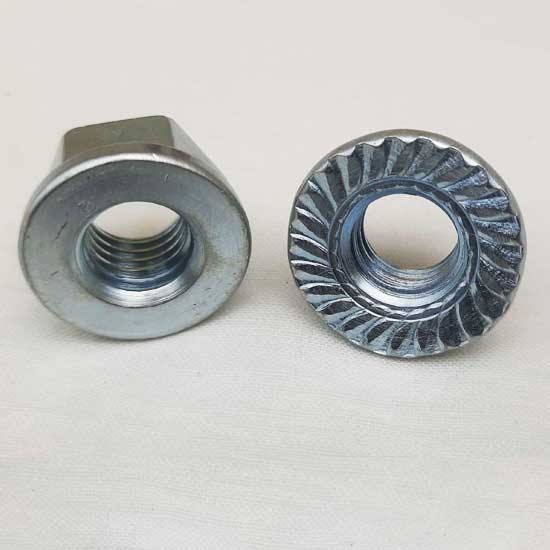

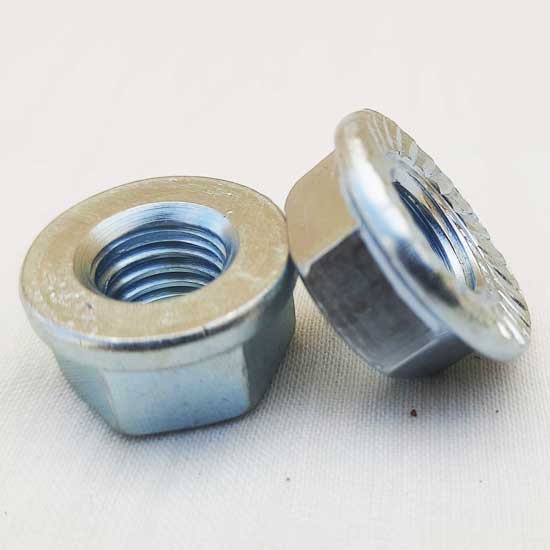

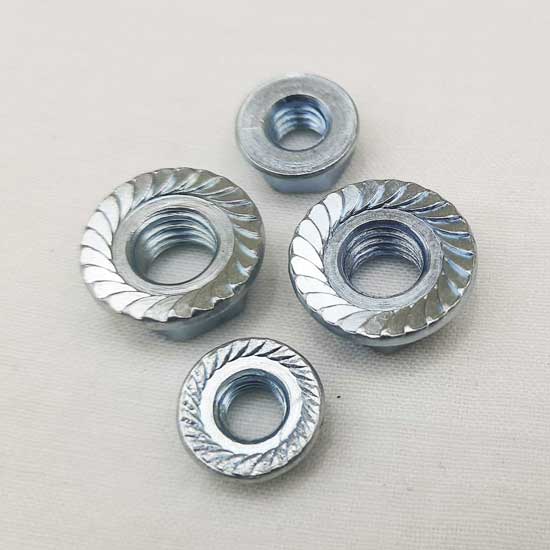

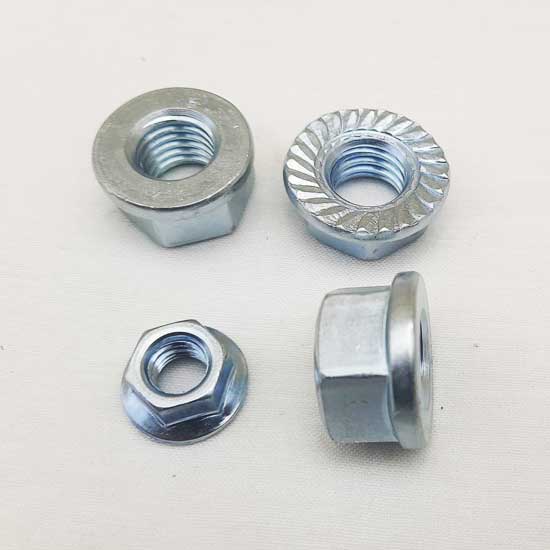

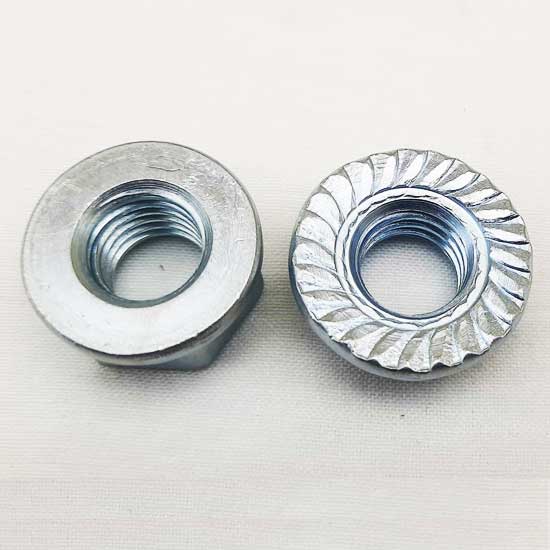

| M5x0.8 Flange Nut (Serration & Plain) |
4005020805 |
GR 6 |
|
| Across Flat |
7.73 / 8.00 |
| Across Corner |
8.79 Min |
| Total Thicknes |
5.35 / 5.65 |
| Flange Diameter |
11.60 / 12.00 |
| Flange Thickness |
1.00 Min |
|
| M6x1.0 Flange Nut (Serration & Plain) |
4006031006 |
GR 8 |
|
| Across Flat |
9.73 / 10.00 |
| Across Corner |
11.02 Min |
| Total Thicknes |
5.85 / 6.15 |
| Flange Diameter |
12.60 / 13.00 |
| Flange Thickness |
1.20 Min |
|
| M8x1.25 Flange Nut (Serration & Plain) |
4008041207 |
GR 8 |
|
| Across Flat |
11.73 / 12.00 |
| Across Corner |
13.02 Min |
| Total Thicknes |
7.35 / 7.65 |
| Flange Diameter |
16.60 / 17.00 |
| Flange Thickness |
1.20 Min |
|
